The TCM-1 tilt current meter is ideal for measuring water velocity from inland to the edge of the continental shelf. The simple design and lower cost of the TCM-1 make it feasible to measure current in many locations simultaneously.

The TCM-1 is field configurable for either low or high current range by simply adding or removing a calibrated ballast weight. The ballast washer is recommended for lower currents consistently under 40 cm/s. Housed rugged PVC, with no external sensors, the TCM-1 is easy to deploy and recover. The built-in data logger includes a USB communication interface, a microSD flash memory card, and a long-life lithium battery.

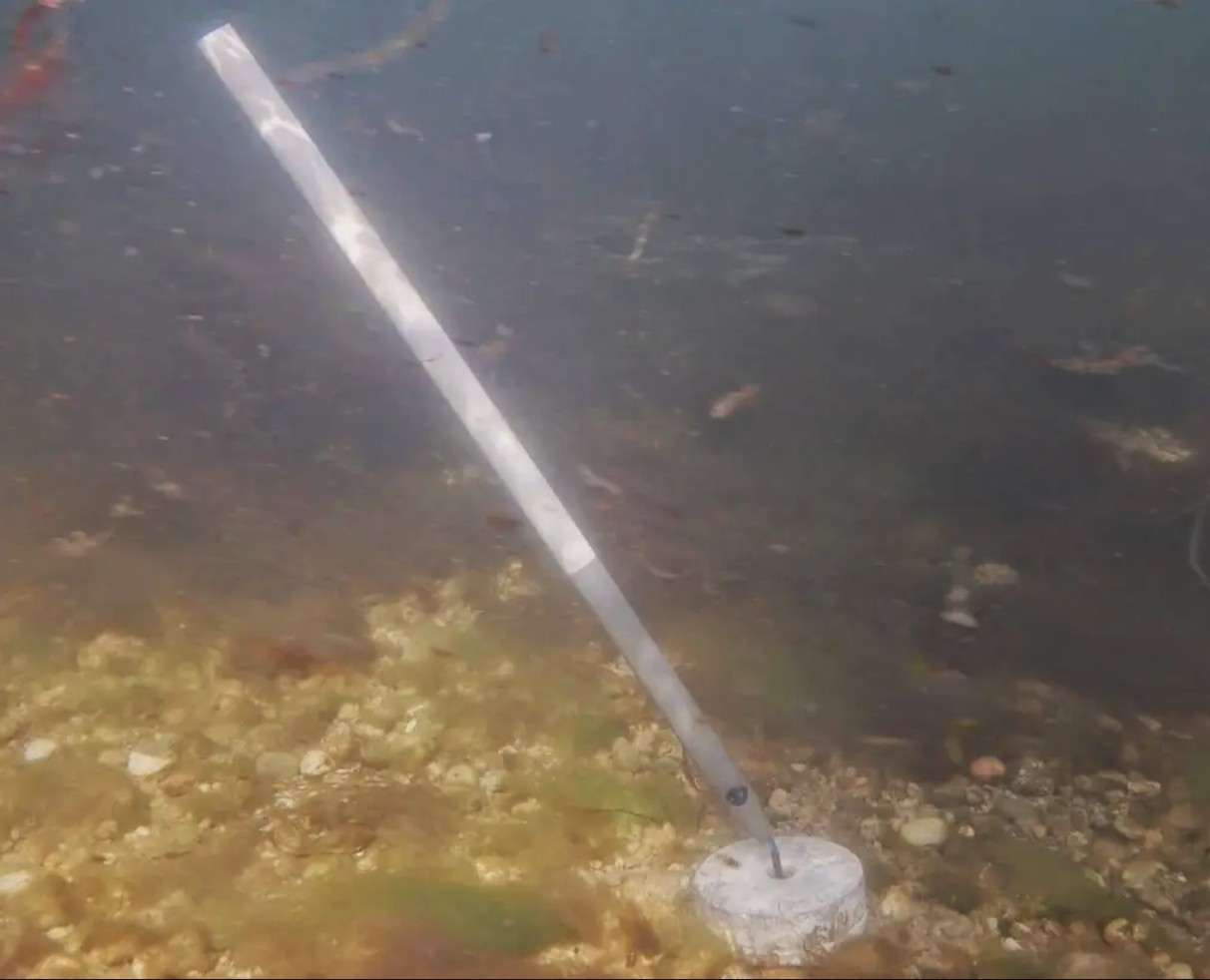

The TCM-1 Tilt Current Meter measures current using the drag-tilt principle. The data logger is buoyant and is anchored to the bottom via a short flexible tether. Moving water tilts the data logger in the direction of flow. The TCM-1 contains a 3-axis accelerometer and 3-axis magnetometer for measuring tilt and bearing. The resulting orientation data is converted to current by applying calibration coefficients.
