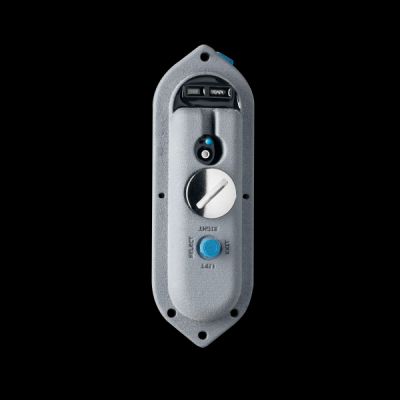

DEEPOD
1/0
Compact CTD. Can be used as impedance analyzer for custom electrodes which can include biofilm thickness Measurement, marine corrosion measurement (loss if mass in metal wire or other materials).
GENERAL SENSOR INFORMATION
Device PID (L22)
TOOL2226
NVS
Sensor name
DEEPOD
Instrument Type (L05)
130
Version
C
Parameters
Technology Readiness Level (TRL)
7 - System prototype demonstration in operational environment
Assembly Type
Purchase of complete unit
Price category
$101 - $500
Sensor Lifetime Months
3 years for base unit.Lifetime of sensor plugs varies with use and environment, typical lifetime 1-2months. Lifetime heavily depends on acceptable drift.
Power Supply Type
Battery or 5V cable
Battery Lifetime Days
Max 1000hrs
Accuracy Performance
-
DIMENSIONS
Length
8.7 cm
Width
3.2 cm
Depth
1.9 cm
Weight
0.3 kg
Measurement Range
-
Service Providers
Service providers can be developers, manufacturers, or resellers.Manufacturer
Name
Sensoid / DPP Dynamo Power & Process
Webpage
https://www.deepod.com/
Description
-
Contact
Fredrik Gustavsson
Contact Email
MISC
Data Transmission Range
Wifi, RS485 serial / USB, NB-IOT cellular with antenna max 5m length.
Data Transmission Frequency
real time (with NB-IOT modem, antenna above surface)near real time (data can be sent when above water line with WiFi or NB-IOT)
Data Format
MQTT JSON format for cloud AWS data. Serial Ascii for RS485.
Keywords
depth
temp
conductivity
acceleration
corrosion rate
loss of mass
biofilm thickness with custom electrodes
Documentation
https://www.deepod.se/deepodV1.html
Documents
-
Last Update
2025-11-12 10:02:47
