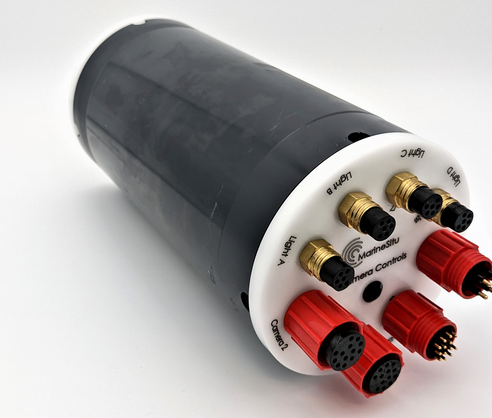

CC1 - Camera System Controller
Intended for long term underwater optical monitoring for cabled platforms
GENERAL SENSOR INFORMATION
Device PID (L22)
-
Sensor name
CC1 - Camera System Controller
Instrument Type (L05)
311
Version
Control 2x cameras and up to 8x lights
Parameters
Technology Readiness Level (TRL)
9 - Actual system proven in operational environment (Successful mission deployment)
Assembly Type
Purchase of complete unit
Price category
$2,001 - $10,000
Sensor Lifetime Months
>60
Power Supply Type
48 VDC
Battery Lifetime Days
-
Accuracy Performance
Triggering with microsecond resolution
DIMENSIONS
Length
25.4 cm
Width
16.9 cm
Depth
16.9 cm
Weight
3.4 kg
Measurement Range
-
Service Providers
Service providers can be developers, manufacturers, or resellers.MISC
Data Transmission Range
Ethernet comms
Data Transmission Frequency
Real time
Data Format
.json or .csv
Keywords
Synchronized mono
Synchronized stereo
optical camera systems and lights
system health monitoring
temperature
humidity
Documents
-
Last Update
2025-05-19 15:25:57
