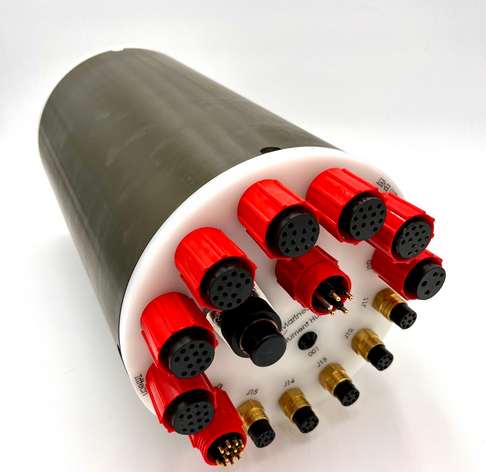

H1 - Integration Hub
1/0
Intended for instrument integration on cabled sensor platforms
GENERAL SENSOR INFORMATION
Device PID (L22)
-
Sensor name
H1 - Integration Hub
Instrument Type (L05)
398
Version
10x controllable output channels for integrating sensor platforms, up to 8x Ethernet and/or 8x seria
Parameters
Technology Readiness Level (TRL)
9 - Actual system proven in operational environment (Successful mission deployment)
Assembly Type
Purchase of complete unit
Price category
$2,001 - $10,000
Sensor Lifetime Months
>60
Power Supply Type
48 VDC
Battery Lifetime Days
-
Accuracy Performance
Triggering with microsecond resolution
DIMENSIONS
Length
-
Width
-
Depth
-
Weight
6.5 kg
Measurement Range
-
Service Providers
Service providers can be developers, manufacturers, or resellers.MISC
Data Transmission Range
Fiber optic, Ethernet, and serial comms
Data Transmission Frequency
Real time
Data Format
.json or .csv
Keywords
instrument control
TTL triggering for synchronization
system health monitoring
temperature
humidity
current
voltabe
IMU
Documents
-
Last Update
2025-05-19 15:26:44
