WiSens

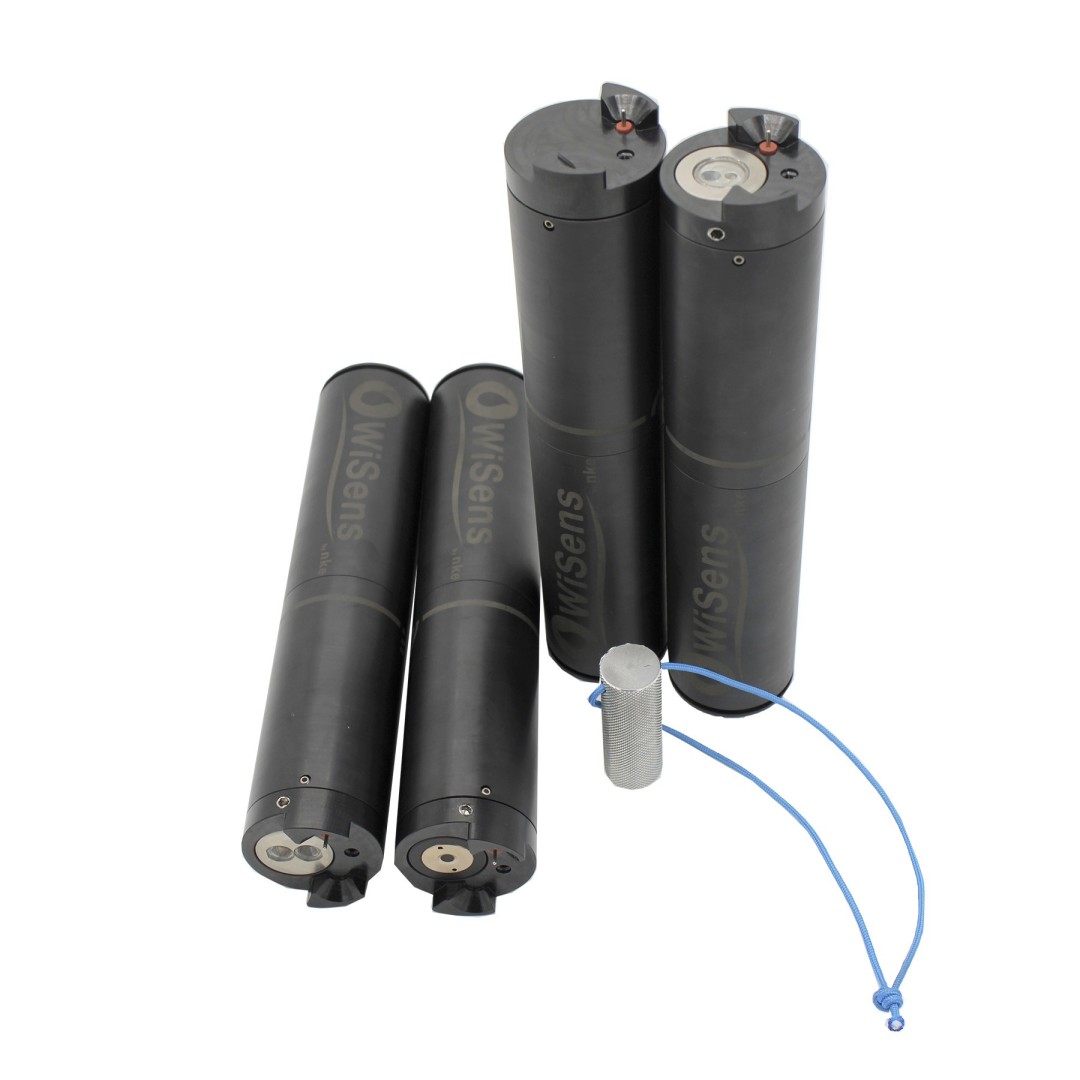

The WiSens datalogger measures and records the main physicochemical water parameters thanks to its high-technology sensors. It delivers high-precision data with long-lasting and replaceable lithium batteries. It benefits from a fast wireless configuration through a web interface.
A range of 6 WiSens datalogger models exist, depending on the model the WiSens can measure temperature, pressure, conductivity, salinity, turbidity, acceleration, dissolved oxygen and even tide and wave.
The WiSens can be coupled with the WiHub, a communication modem that can transfer data via 3G/4G, ethernet or WiFi, enabling wireless data retrieval including real-time GPS positioning, with options for email delivery or direct transmission to a remote server.
GENERAL SENSOR INFORMATION
Device PID (L22)
TOOL2060
NVS
Sensor name
WiSens
Instrument Type (L05)
DLOG
Version
2nd generation
Parameters
- CNDC - Electrical conductivity of the water column
- TEMP - Temperature of the water column
- CPWC - Chlorophyll pigment concentrations in water bodies
- DOXY - Dissolved oxygen parameters in the water column
- WVST - Wave height and period statistics
- AHGT - Vertical spatial coordinates
- PSAL - Salinity of the water column
- SVEL - Sound velocity and travel time in the water column
- TVLT - Raw suspended particulate material concentration sensor output
Technology Readiness Level (TRL)
9 - Actual system proven in operational environment (Successful mission deployment)
Assembly Type
Purchase of complete unit
Price category
$2,001 - $10,000
Sensor Lifetime Months
200+ overall lifetime
Power Supply Type
Lithium batteries - easily replaceable
Battery Lifetime Days
30 to 600 depending on use
Accuracy Performance
High resolution
DIMENSIONS
Length
26 cm
Width
4 cm
Depth
4 cm
Weight
0.5 kg
Measurement Range
-
Service Providers
Service providers can be developers, manufacturers, or resellers.Manufacturer
Name
nke instrumentation
Webpage
https://nke-instrumentation.fr/
Description
-
Contact
Félix Lamirand
MISCELLANEOUS
Data Transmission Range
Wifi / 3G-4G
Data Transmission Frequency
delayed (needs to be out of the water to transmit via WiFi / 3G-4G)
Data Format
CSV, Tokapi
Keywords
underwater data logger
Documentation
-
Video
-
Documents
Last Update
2026-08-13 12:47:02
