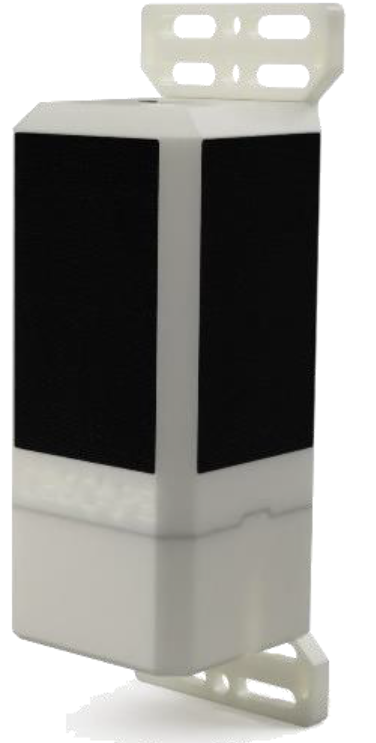

Wave Module
Marine & Coastal engineering, Environmental monitoring, Work compliance monitoring,
GENERAL SENSOR INFORMATION
Device PID (L22)
-
Sensor name
Wave Module
Instrument Type (L05)
-
Version
Solar powered Wave Measurement Module
Parameters
Technology Readiness Level (TRL)
9 - Actual system proven in operational environment (Successful mission deployment)
Assembly Type
Purchase of complete unit
Price category
$2,001 - $10,000
Sensor Lifetime Months
+60 months
Power Supply Type
Solar and 1 x Rechargable 18650Li-On Battery
Battery Lifetime Days
365 - 730 days
Accuracy Performance
Validation study against Datwell Waverider
DIMENSIONS
Length
9 cm
Width
9 cm
Depth
30 cm
Weight
2.5 kg
Measurement Range
Hm0, Hmax, Tp, Tm01, Tm02, Tm-10, Tmax, Dirp, Dirm, ?p, ?m
Service Providers
Service providers can be developers, manufacturers, or resellers.MISC
Data Transmission Range
GSM (4G with 2G fallback, upgradable Satellite (Iridium)
Data Transmission Frequency
Near real time
Data Format
Bulk wave parameters, diagnostic parameters, 1D wave spectra, directional wave spectra (text files, png or pdf report)
Keywords
Bulk wave parameters
1D wave spectra
Full Wave Spectrum
interior temperature
humidity
atmospheric pressure
diagnostic parameters
Latitude
Longitude
Battery voltage
Solar panel voltage
Signal strength
Documentation
-
Documents
Last Update
2025-08-05 10:41:43
