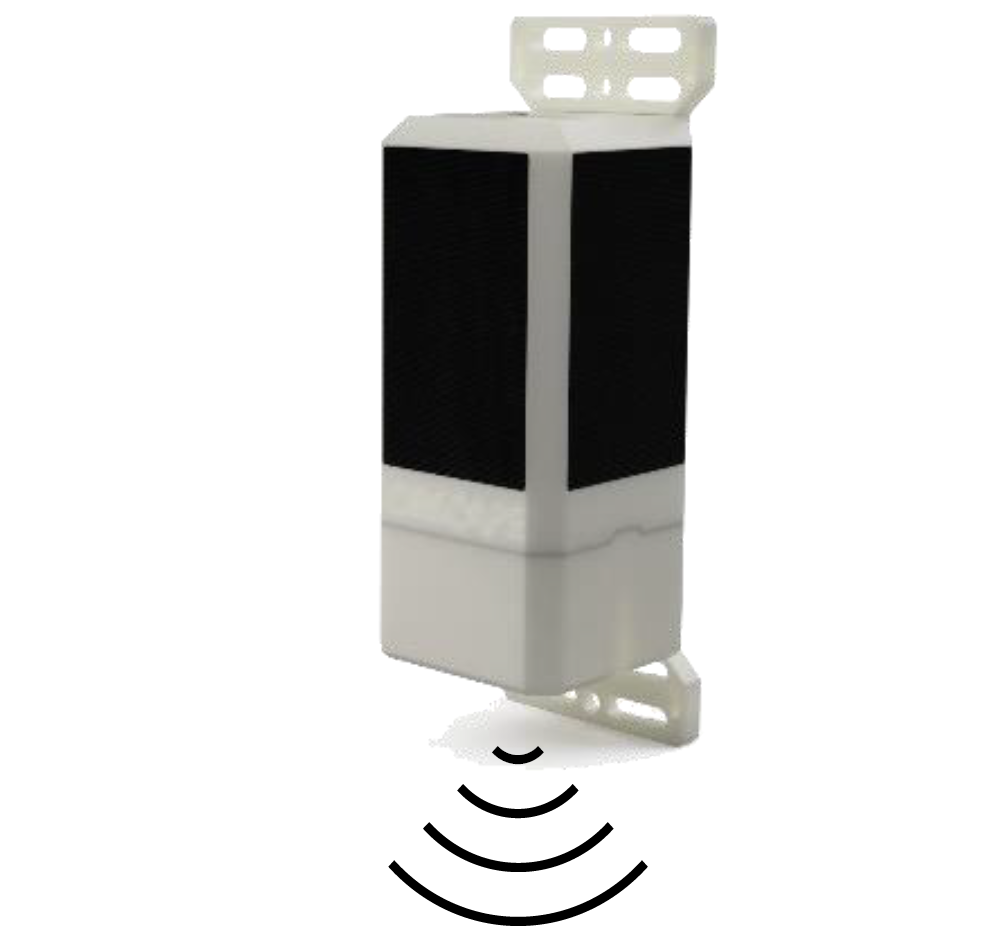

Radar Wave Gauge
Marine & Coastal engineering, Environmental monitoring, Work compliance monitoring,
GENERAL SENSOR INFORMATION
Device PID (L22)
-
Sensor name
Radar Wave Gauge
Instrument Type (L05)
110
Version
Mains /battery powered Wave measurement Module
Parameters
Technology Readiness Level (TRL)
9 - Actual system proven in operational environment (Successful mission deployment)
Assembly Type
Purchase of complete unit
Price category
$2,001 - $10,000
Sensor Lifetime Months
+60 months
Power Supply Type
8 x Primary Lithium D Cell BatteriesIncluded as standard.
Battery Lifetime Days
365 - 730 days
Accuracy Performance
testing laboratory (area of testing)which is accredited according to DIN EN ISO/IEC 17025 (2018-03) by the Deutsche Akkreditierungsstelle GmbH (DAkkS)Test accreditation valid for the scope of testing procedures as stated in the accreditation certificate starting with the registration number: D-PL-12076-01.
DIMENSIONS
Length
9 cm
Width
9 cm
Depth
30 cm
Weight
2.5 kg
Measurement Range
Hm0, Hmax, Tp, Tm01, Tm02, Tm-10, Tavg, Tmax, water level, battery voltage, GSM signal strength, internal temperature, internal humidity, sensor inclination
Service Providers
Service providers can be developers, manufacturers, or resellers.MISC
Data Transmission Range
GSM (4G with 2G fallback, upgradable Satellite (Iridium)
Data Transmission Frequency
Near real time
Data Format
Bulk wave parameters, diagnostic parameters, 1D wave spectra, directional wave spectra (text files, png or pdf report)
Keywords
Hm0
Hmax
Tp
Tm01
Tm02
Tm-10
Tavg
Tmax
water level
battery voltage
GSM signal strength
internal temperature
internal humidity
sensor inclination
Documentation
-
Last Update
2025-08-05 10:46:17
