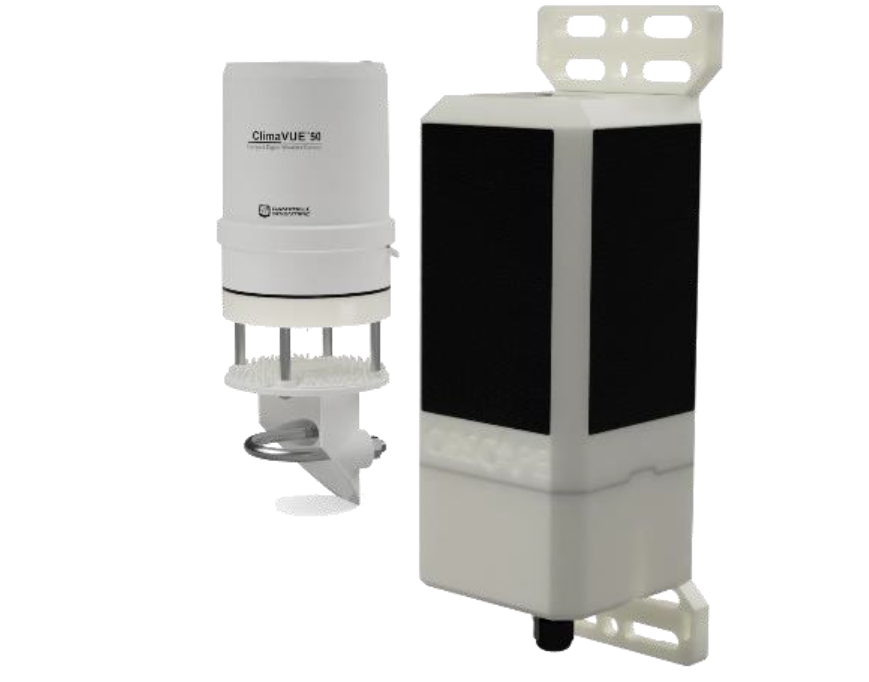

Onshore Weather Station
Weather data are an indispensable resource for any environmental monitoring program. Wind, temperature, solar radiation and rainfall are the main drivers of environmental dynamics. Whether you are studying dune development, catchment management, stormwater runoff or ocean waves, everything starts with a thorough understanding of the local weather. Therefore, Obscape’s Weather Station should be a standard asset of your environmental monitoring setup. It provides a wide range of weather parameters, including air temperature and pressure, wind speed and direction, rainfall, solar radiation, relative humidity and lightning.
GENERAL SENSOR INFORMATION
Device PID (L22)
-
Sensor name
Onshore Weather Station
Instrument Type (L05)
102
Version
Solar powered Metweather measurement Module
Parameters
Technology Readiness Level (TRL)
9 - Actual system proven in operational environment (Successful mission deployment)
Assembly Type
Purchase of complete unit
Price category
$2,001 - $10,000
Sensor Lifetime Months
+60 months
Power Supply Type
Solar and 1 x Rechargable 18650Li-On Battery
Battery Lifetime Days
365 - 730 days
Accuracy Performance
Manufactured under ISO 9001:2015EM ISO/IEC 17050:2010 (CE Mark)Air Temperature Measurement Accuracy ±0.6°CRelative Humidity Accuracy ±3% RH typical (varies with, temperature and humidity)Barometric Pressure Resolution 0.1 hPa, Accuracy ±1 mb (over the range of -10° to +50°C) ±5 mb (over the range of -40° to +60°C)Vapor Pressure Resolution 0.01 kPa, Accuracy or Repeatability Varies with temperature and, humidity; ±0.2 kPa typical below 40°C.Wind Speed Resolution 0.01 m/s (0.02 mph), Accuracy or Repeatability 0.3 m/s or 3% (0.67 mph or 3%), whichever is greaterWind Direction Resolution 1°, Accuracy ±5°Solar Radiation Resolution 1 W m-2, Accuracy ±5% of measurement (typical), Spectral Range 300 to 1150 nmPrecipitation , Resolution 0.017 mm, Accuracy ±5% of measurement (from 0 to 50 mm/h or 0 to 1.97 in./h)
DIMENSIONS
Length
10 cm
Width
10 cm
Depth
30 cm
Weight
3.5 kg
Measurement Range
Air TemperatureMeasurement Range -50° to +60°CRelative HumidityMeasurement Range 0 to 100%Barometric PressureBarometer Operating Temperature Range -40° to +60°C, Measurement Range 500 to 1100 hPaVapor PressureMeasurement Range 0 to 47 kPa,Wind SpeedWind Speed Maximum 10 s gust, Measurement Range 0 to 30 m/s (0 to 67 mph),Wind DirectionMeasurement Range 0° to 359°,Solar RadiationMeasurement Range 0 to 1750 W m-2, Resolution 1 W m-2, Accuracy ±5% of measurement (typical), Spectral Range 300 to 1150 nmPrecipitationMeasurement Range 0 to 400 mm/h (15.75 in./h)
Service Providers
Service providers can be developers, manufacturers, or resellers.MISC
Data Transmission Range
GSM (4G with 2G fallback, upgradable Satellite (Iridium)
Data Transmission Frequency
Near real time
Data Format
-
Keywords
Air temperature
solar irradiance
rainfall intensity
lightning strike count
lightning distance
wind speed
wind direction
gust wind speed
vapor pressure
atmospheric pressure
relative humidity
Documentation
-
Last Update
2025-08-05 10:47:48
