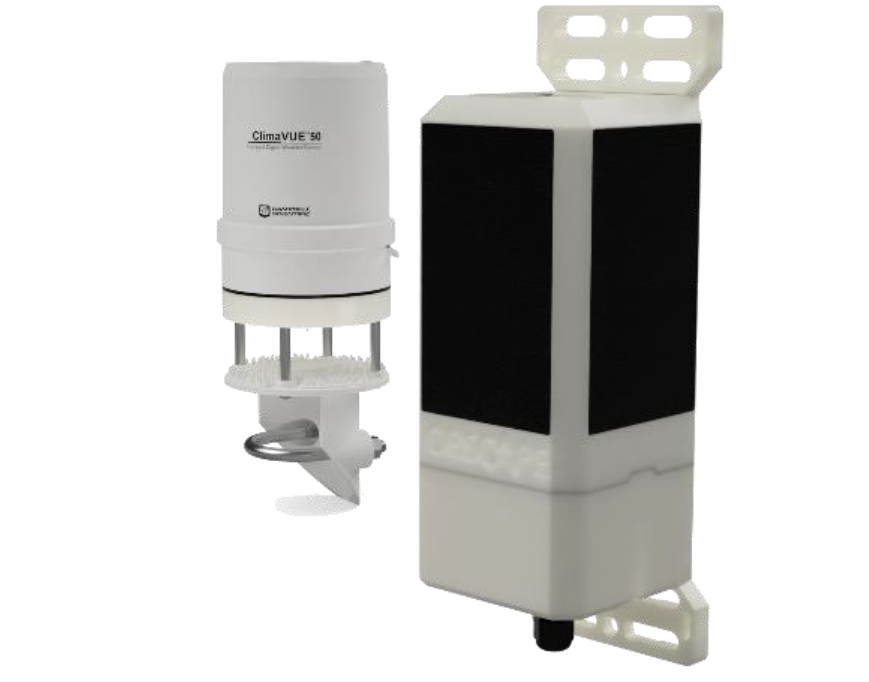

Offshore Weather Station
From mounting on buoys, USVs, and ASVs or racing and cruising sailboats to yachting and commercial fishing vessels everything starts with a thorough understanding of the local weather. Therefore, Obscape’s Offshore Weather Station should be a standard asset of your environmental monitoring setup. It provides a wide range of weather parameters, including air temperature and pressure, wind speed and direction.
GENERAL SENSOR INFORMATION
Device PID (L22)
-
Sensor name
Offshore Weather Station
Instrument Type (L05)
102
Version
Solar powered Metweather measurement Module
Technology Readiness Level (TRL)
9 - Actual system proven in operational environment (Successful mission deployment)
Assembly Type
Purchase of complete unit
Price category
$2,001 - $10,000
Sensor Lifetime Months
+60 months
Power Supply Type
Solar and 1 x Rechargable 18650Li-On Battery
Battery Lifetime Days
365 - 730 days
Accuracy Performance
Certifications and Standards: CE, IPX7, RoHS, IEC61000-4-2, IEC60945, IEC60950_1C, IEC60950_22A, EN55022, EN55024, EN15014982Wind Speed Range: 0 to 40 m/s, Accuracy: 5% at 10 m/s at 4 angles, Resolution: 0.1 m/s, Calculations: User configurable dampingWind Direction, Range: 0° to 359.9°, Accuracy: ±3° at 10 m/s, Resolution: 0.1°, Calculations: User configurable dampingAir Temperature, Range: -40° to 80°C (-40 to 176°F), Accuracy: ±1.1°C at 20°C, Resolution: 0.1°C, Barometric Pressure, Range: 300 to 1100 hPa, Accuracy: ±0.5 hPa at 25°C (or better), Resolution: 0.1 hPaThree-axis Compass, Range: 0 to 359.9°, Accuracy: 1° static heading accuracy; 2° dynamic heading accuracy, Resolution: 0.1°,Pitch and Roll, Measurement Type: MEMS, Range: 50°, Accuracy: ±1° in range of ±30°, Resolution: 0.1°GPS Position Accuracy: 3 m (10') CEP
DIMENSIONS
Length
9 cm
Width
9 cm
Depth
30 cm
Weight
3.5 kg
Measurement Range
WeatherStation sensor accurately measures current weatherconditions, including:• Theoretical wind speed and direction• Air temperature and calculated wind chill• Barometric pressure• GPS position, speed over ground, course over ground• Three-axis solid state compass with dynamic stabilization• Three-axis rate gyro for rate-of-turn• Best-in-class
Service Providers
Service providers can be developers, manufacturers, or resellers.MISC
Data Transmission Range
GSM (4G with 2G fallback, upgradable Satellite (Iridium)
Data Transmission Frequency
Near real time
Data Format
-
Keywords
Apparent wind speed and angle
Air temperature
Barometric Pressure
Three-axis Compass
Pitch and Roll
Internal GPS position
relativehumidity
wind chill
Documentation
-
Last Update
2025-08-05 10:49:15
