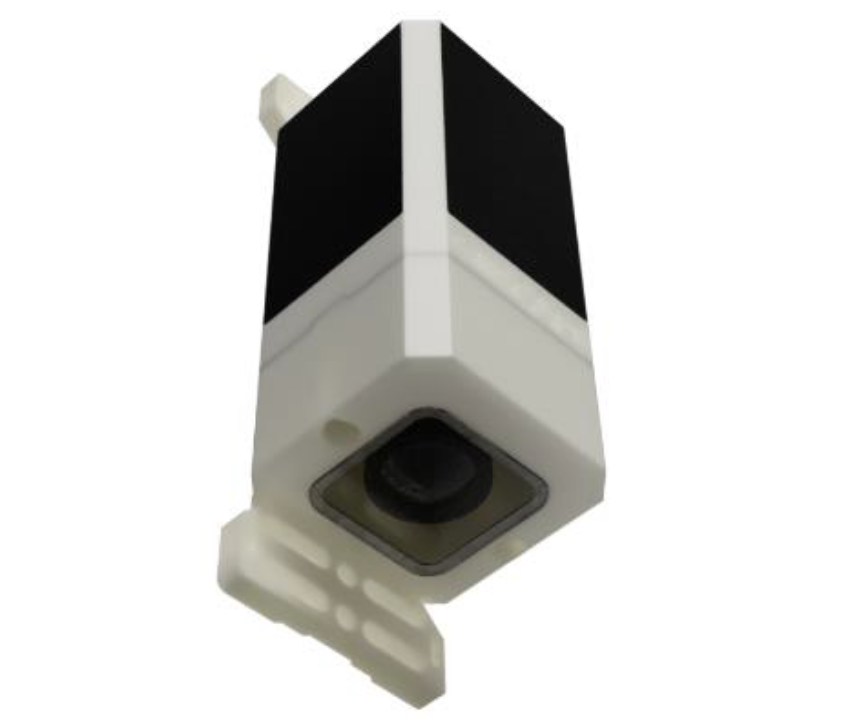

HQ Camera
The HQ Camera is ideally suited for long-term visual monitoring of gradually evolving processes, such as beach and river morphology, littering of surface waters or construction works. Its wireless nature and compact housing allows for easy deployment in remote as well as urban environments makes the camera very suitable for remote monitoring of: surface water debris, construction projects, protected wildlife, port vessel movements, coastal erosion, etc.
GENERAL SENSOR INFORMATION
Device PID (L22)
-
Sensor name
HQ Camera
Instrument Type (L05)
-
Version
Solar powered high quailty image capture Module ( Downward and Forward facing options available)
Parameters
Technology Readiness Level (TRL)
9 - Actual system proven in operational environment (Successful mission deployment)
Assembly Type
Purchase of complete unit
Price category
$2,001 - $10,000
Sensor Lifetime Months
+60 months
Power Supply Type
Solar and 1 x Rechargable 18650Li-On Battery
Battery Lifetime Days
365 - 730 days
Accuracy Performance
The operational 10 to 60-minute interval of the HQ Time-Lapse Camera allows for monitoring of processes that gradually evolve on timescales of 10 minutes and up. Examples of such processes include sediment dynamics in rivers, on beaches and in dune areas, construction works, traffic intensity, parking lot occupancy or cloud formation. The ability of the device to collect image bursts at a known framerate yields a whole range of additional applications, such as velocity estimation of cars or water surfaces.The downward-looking version of the HQ Time-Lapse Camera was developed particularly for monitoring debris/litter on water surfaces when mounted on a bridge deck. Paired with automatic litter detection software, the camera will keep a close watch on pollution rates of the river surface over time.
DIMENSIONS
Length
9 cm
Width
9 cm
Depth
30 cm
Weight
2.5 kg
Measurement Range
2,8mm lens: 3m, 4mm lens: 6m , 6mm lens: 7,5m , 8mm lens: 12m , 12mm lens: 18m , 16mm lens: 25m , 25mm lens: 25m , 35mm lens 25m
Service Providers
Service providers can be developers, manufacturers, or resellers.MISC
Data Transmission Range
GSM (4G with 2G fallback, upgradable Satellite (Iridium)
Data Transmission Frequency
Near real time
Data Format
Images (user selectable framerate and burst size), cellular signal strength, battery voltage, internal temperature, atmospheric pressure, sensor inclination.
Keywords
12-megapixel sensor
Obscape
High Quality Camera
