PROBE
1/0

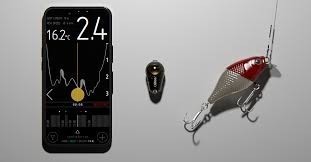

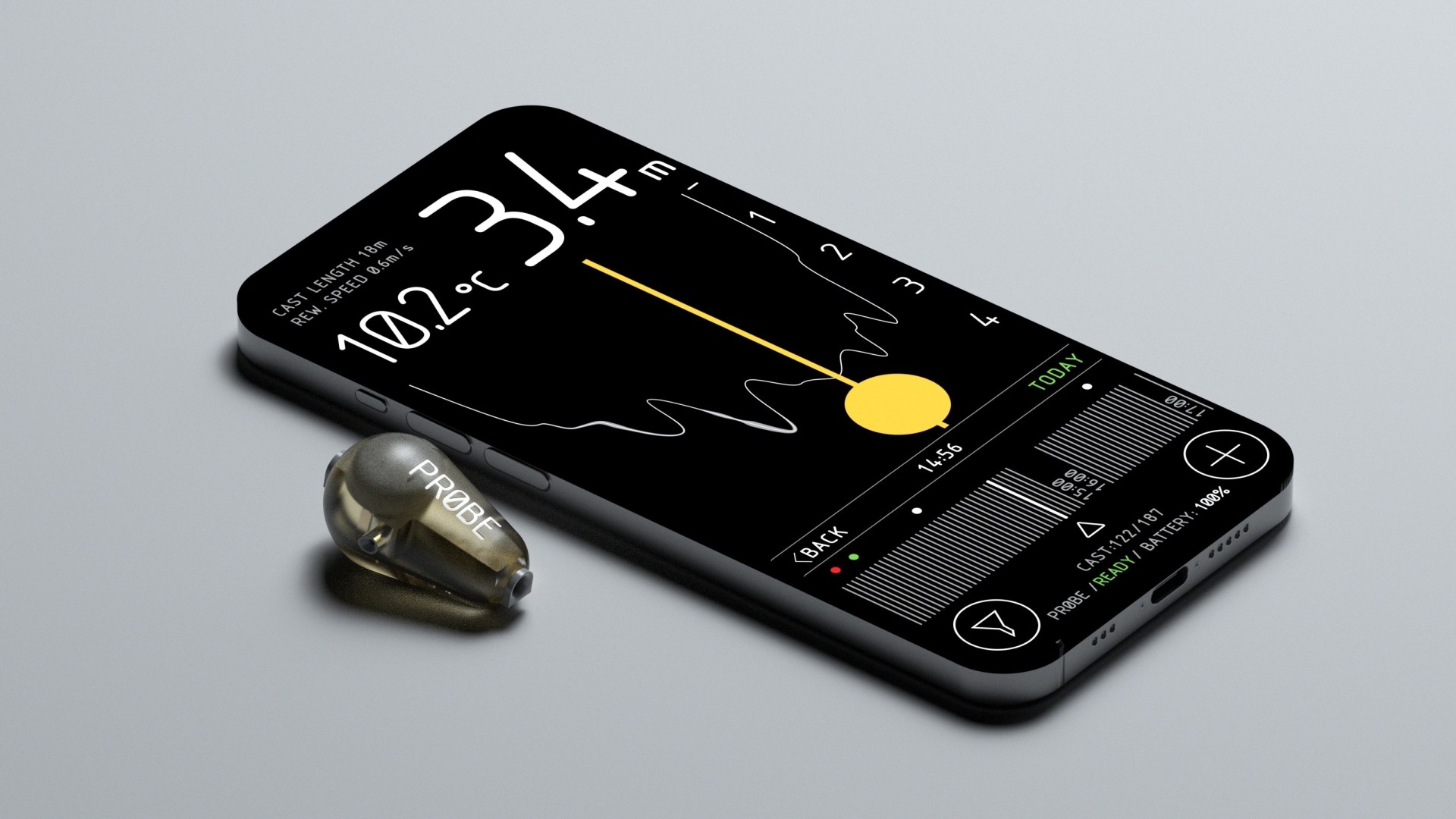

PROBE combines the gathering of environmental data with the world's largest hobby - fishing! While providing anglers with unparalleled information about their lures' behavior underwater, PROBE also collects crucial data about the water environment, including temperature, conductivity, and turbidity. This data is collected in quantities unmatched by any other source; for each angler, each cast, each location, and each depth.
GENERAL SENSOR INFORMATION
Device PID (L22)
TOOL2228
NVS
Sensor name
PROBE
Instrument Type (L05)
134
Version
one
Parameters
Technology Readiness Level (TRL)
9 - Actual system proven in operational environment (Successful mission deployment)
Assembly Type
Purchase of complete unit
Price category
$101 - $500
Sensor Lifetime Months
48 month or more
Power Supply Type
USB-C for charging (5V)
Battery Lifetime Days
10 hours of constant use.
Accuracy Performance
accuracy: water temperature: +/-2°C (before calibration) +/- 0,2°C (after calibration, to be confirmed); water depth: +/-1,4dm; conductivity: +/-2,5%; light: +/- 2,5%; accelerometer +/- 20mG
DIMENSIONS
Length
3.3 cm
Width
2 cm
Depth
2 cm
Weight
0.007 kg
Measurement Range
Depth: 0-300m; temperature: 1-40°C (can be adjusted); conductivity: 249-1501 mS/cm; light: 0-1700; acceleration
Service Providers
Service providers can be developers, manufacturers, or resellers.Manufacturer
Name
Djup Ab
Webpage
http://probefishing.com
Description
-
Contact
Christer Chytraéus
Contact Email
MISC
Data Transmission Range
bluetooth to an app and database
Data Transmission Frequency
near real time
Data Format
Json
Keywords
Water temperature
depth
Conductivity
Light
Acceleration
Documentation
https://www.probefishing.com/
Documents
-
Last Update
2025-11-12 10:02:47
