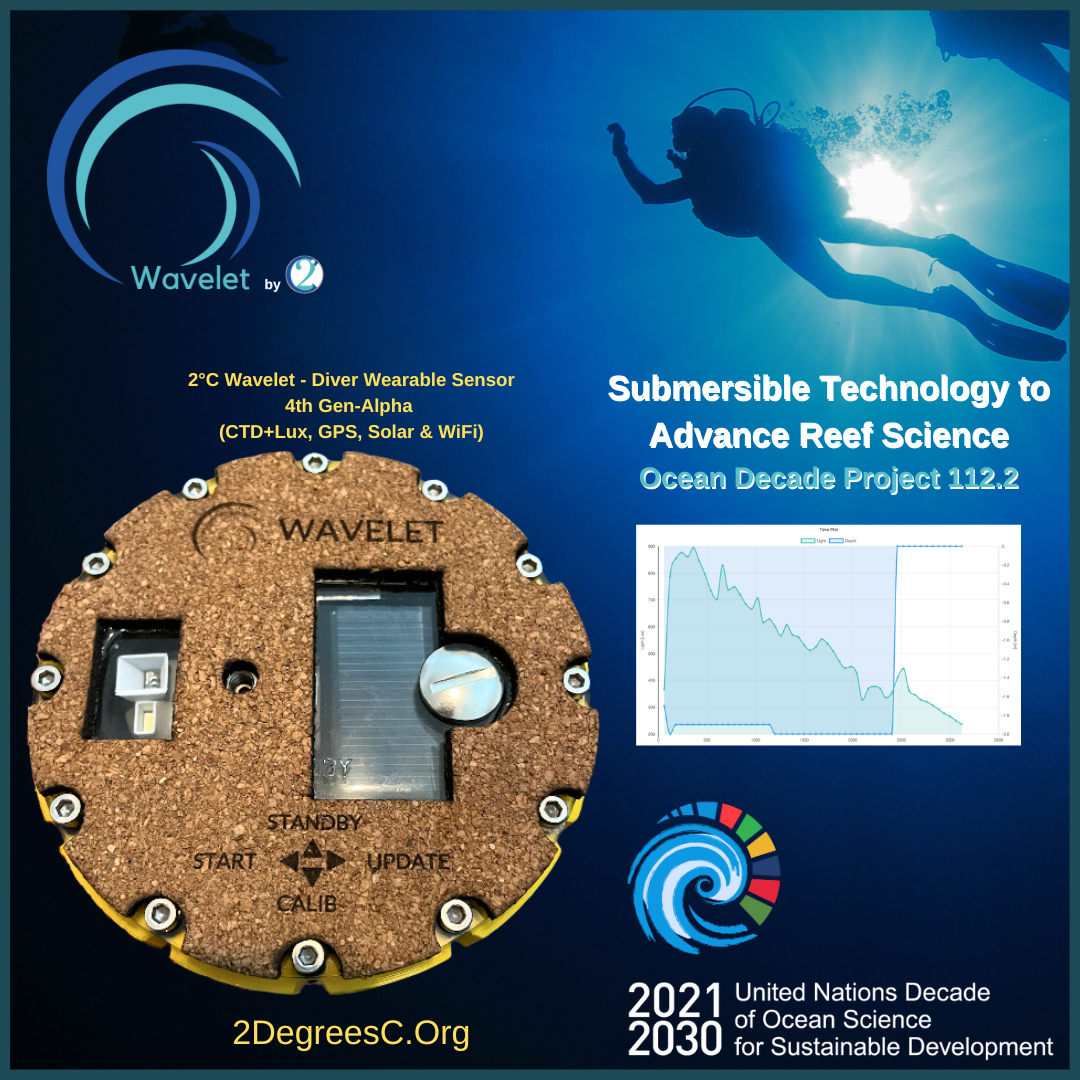

2°C Wavelet
1/0
Use cases supported:

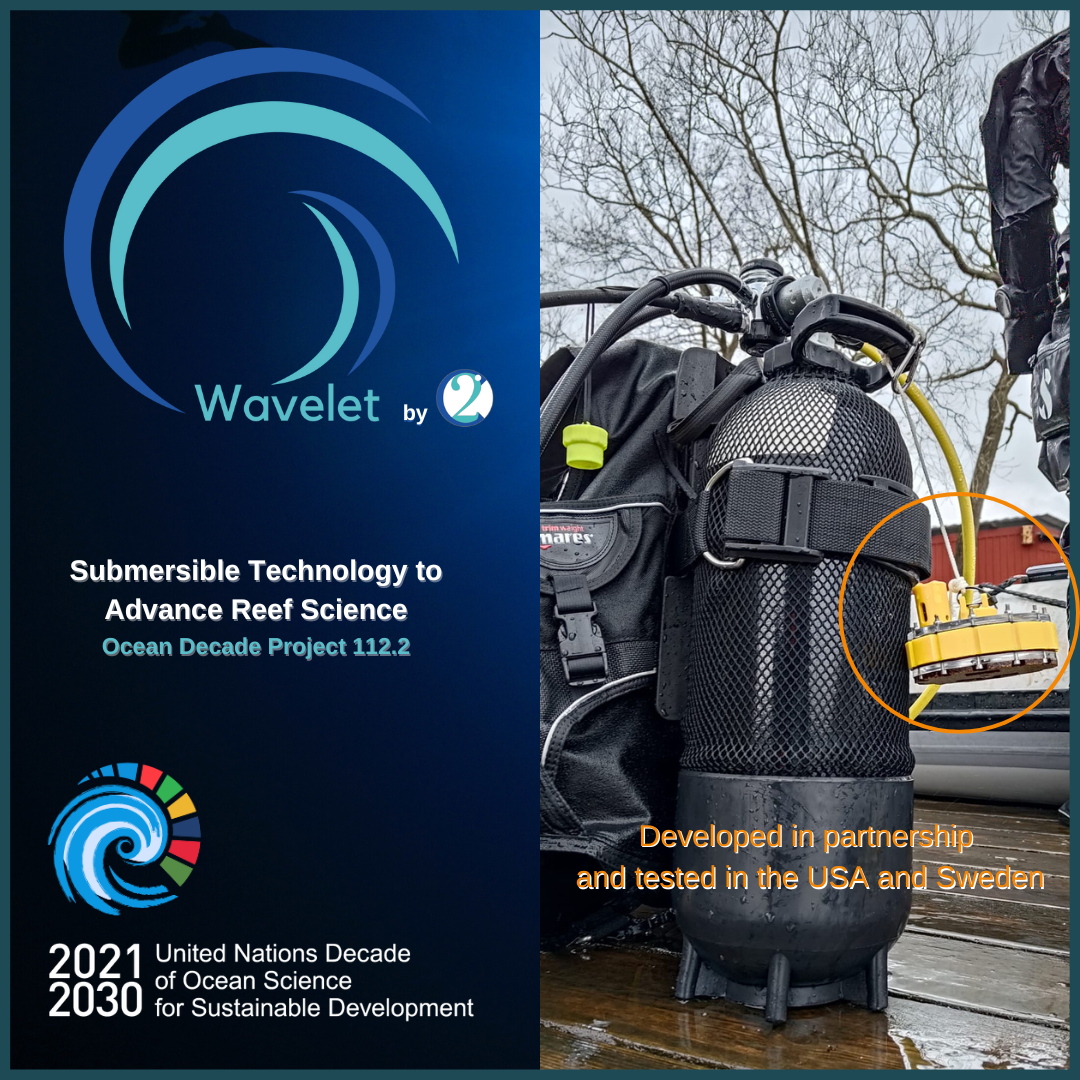

1) Primary: Attached to volunteer SCUBA divers to collect scientifically accurate oceanographic data whenever and wherever they dive worldwide.
2) Vertical profiling of ocean column via extendable tether from the surface.
3) Short-term (<24hr) deployment on sea bed/water column via weighted tether.
4) Attached to moving vessel to perform wide area in situ sampling.
GENERAL SENSOR INFORMATION
Device PID (L22)
TOOL2238
NVS
Sensor name
2°C Wavelet
Instrument Type (L05)
-
Version
-
Parameters
Technology Readiness Level (TRL)
8 - System complete and qualified
Assembly Type
Purchase of complete unit
Price category
$101 - $500
Sensor Lifetime Months
36
Power Supply Type
200-1200mAh 1S LiPo, charged via solar or USB
Battery Lifetime Days
12.5
Accuracy Performance
Temperature: ±0.15°C Depth/Pressure: ±1.5 mb Conductivity: 0.01 ppt (Resolution), 0.5ppt/200hrs (Drift), Field calibration Light: 0.1 Lx (Resolution) RTC: 0.4s/day (Drift) Acceleration: 0.01g (Resolution)
DIMENSIONS
Length
12 cm
Width
12 cm
Depth
6.8 cm
Weight
0.33 kg
Measurement Range
Temperature: 0-40°C Depth/Pressure: 0-300 m Conductivity: 30-38 ppt Light: 0-1800 Lx Acceleration: 0-8g
Service Providers
Service providers can be developers, manufacturers, or resellers.MISC
Data Transmission Range
WiFi (Cloud) and USB (PC)
Data Transmission Frequency
near real time and delayed
Data Format
ASCII/CSV
Keywords
Conductivity
Temperature
Depth
Pressure
Light
Luminous Flux
Geoposition
GPS
Time
GPS+RTC
Acceleration
